Candy Production Line

Semi-Automatic Starch Mogul Plant

Semi-Automatic Starch Mogul Plant

  • Catalog:Candy Production Line
  • Views:
  • Public date: 2023/7/9 14:00:22
  • Phone:0086-13858222336

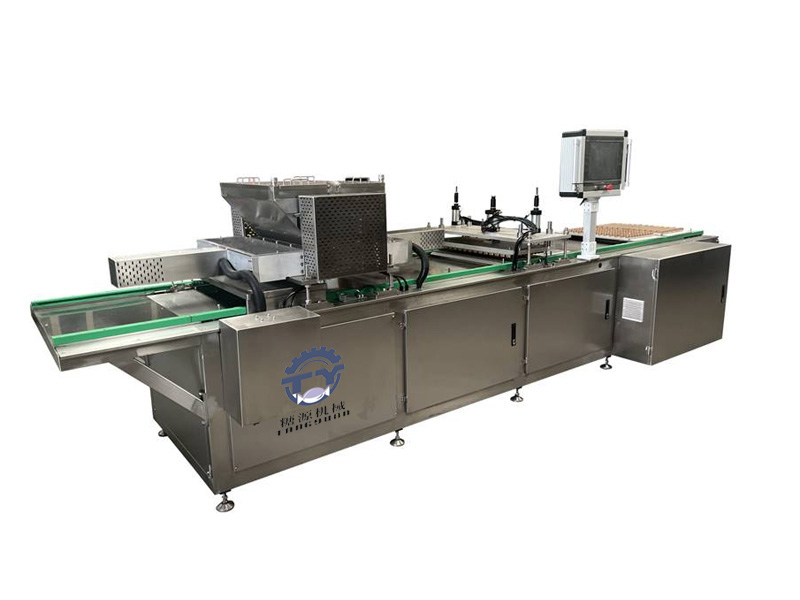

This is a semi-automatic starch mogul plant.It can be produce single color gummy candy, two color gummy candy and gummy candy with center filling. The main features of semi-automatic starch mogul plant are low investment and low capacity, which can fully meet the needs of customers with small capacity requirements for starch gummy candy production. High-quality gummy candy can also be produced by semi-automatic starch mogul plant.

This machine is through the continuous cooking machine→Manually place the starch tray→automatic powder filling in starch tray→Automatic compression molding→automatic depositing→baking room→first powder removal →climbing conveying→second powder removal →oil coating

Model

STM-I

Capacity

Final capacity   base on candy weight

Speed

10 Tray/Minute

Candy Shape

According to   customer need (3D or 2D gummy Candy)

Steam

Consumption

300KG/H

Pressure

0.5-0.8MPA

Electric

Voltage

380V

Power

35KW

Air

Consumption

0.6 M3/MIN

Pressure

0.4-0.6MPA

Workshop

Temperature

25℃

Humidity

<45%

Weight

4000KG
